With over 30 years’ experience of fusion splicer innovation, production and supply. Sumitomo Electric fusion splicers are used world-wide by network installers, fibre optic manufacturers, data centre constructors and carrier grade network operators. Sumitomo Electric’s product range is comprehensive; from hand held micro-splicers through splicers for FTTx and data centre build to High Definition Core Aligning splicers for the backbone network and ribbon splicers for high density networks.

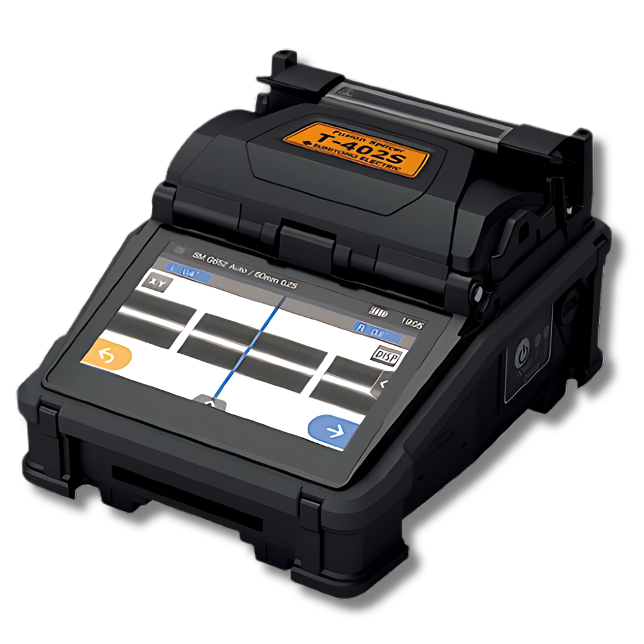

Sumitomo T-402S Fusion Splicer
Active Clad Alignment Fusion Splicer
Highlights
- Weighing only 1.2 kg (with battery) and measuring compact dimensions (126 × 154 × 83 mm without protrusions), it’s ideal for tight workspace usage.
- Ultra Fast Splicing (6 sec.)
- Ultra Fast heating (12 sec.)
- Active clad alignment with dual CMOS camera observation, supporting zoom up to ~370× for accurate fiber positioning
- Stores up to 200 images and 10,000 splice results internally; expandable to 50,200 images and 20,000 splice records with a 16 GB SD card. Compatible with SumiCloud™ via optional Wi-Fi card
Shock-tested (drop from 76 cm on multiple faces), dust and water resistant (around IPX2/IP5X), supporting operation at altitudes up to 5,000 m, temperatures –10 °C to +50 °C, humidity up to 95 %, and wind speeds up to 15 m/s. - Up to 6,000 arc discharges, ensuring extended battery of use over time
Technical Specifications Snapshot
| Specification | Detail |
|---|---|
| Fiber Types Supported | SMF (G.652), MMF (G.651), DSF, NZDSF, BIF |
| Cladding & Coating Diameters | Cladding ~125 µm; Coating 250–1,000 µm |
| Display | 4.3″ color LCD (non-touch) |
| Memory | Internal: 200 images / 10,000 splices; SD (16 GB): up to 50,200 images / 20,000 splices |
| Battery | BU-17 Li-ion, ~250 splice & heat cycles per charge |
| Weight & Size | 0.9 kg (without battery); 1.2 kg (with battery); 126 × 154 × 83 mm |
| Operating Conditions | –10 °C to +50 °C; Humidity up to 95 %; Altitude: up to 5,000 m; Wind: up to 15 m/s |
| Electrode Life | ≈6,000 discharges |
Included Accessories
Standard kit includes:
- BU-17 battery pack
- AC adapter and power cord
- Carrying case (CC-18)
- Working tray (WT-18) with strap kit (WSK-18)
- Quick reference guide
- Optional accessories: fiber cleaver (e.g., FC-7LS), jacket remover (JR-M03), tripod adapter (TA-18), and protective sleeves.
Benefits at a Glance
- Super-fast splicing + heating for rapid deployments
- Exceptional portability—lightweight and compact
- Precision alignment ensures low-loss splicing
- Rugged build stands up to tough environments
- Smart features like NanoTune™ and SumiCloud™ aid efficiency and tracking.
