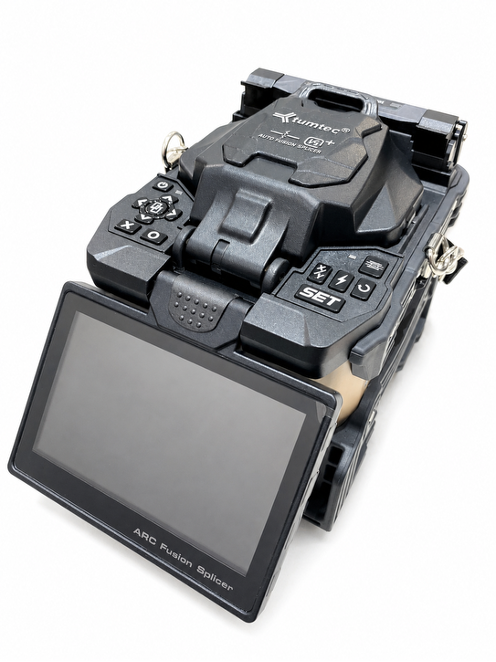

Tumtec V9+
Active Clad Alignment Fusion Splicer
Tumtec V9+ Fusion Splicer is a high-performance core alignment fusion splicer designed for professional fiber optic applications such as FTTx deployment, backbone networks, data centers, and industrial installations. Combining precision, speed, and durability, the V9+ delivers reliable low-loss splicing performance for both field and indoor operations.
Highlights
- Advanced DACAS Digital Analysis Core Alignment System with 6 motors for highly accurate fiber alignment
- Fast splicing time of approximately 6 seconds and heating time starting from 13 seconds
- 5-inch HD color touchscreen with anti-reflective coating for clear visibility in bright environments
- Large detachable 5200mAh battery supporting up to 250 splice and heat cycles
- Rugged design with dust-proof, water-resistant, and high-temperature resistant protection for harsh environments
- Built-in 3 high-power LED lights for low-light and night operations
- Supports multiple fiber types including SM, MM, DS, NZDS, and G.657 fibers
- Equipped with Japanese components and Korean chipset technology for enhanced stability and long-term reliability.
Technical Specifications
| Specification | Detail |
|---|---|
| Alignment Type | Core Alignment, 6 Motors |
| Fiber Type | SM, MM, DS, NZDS, G.657 |
| Typical Splice Loss | SM: 0.02 dB |
| Splicing Time | Approx. 6 seconds |
| Heating Time | Approx. 13 seconds |
| Display | 5” HD Touchscreen |
| Magnification | 500x |
| Battery Capacity | 5200mAh |
| Storage Capacity | 20,000 splice records + 200 images |
| Electrode Life | Up to 5000 arcs |
| Weight | Approx. 2.2 kg with battery |
